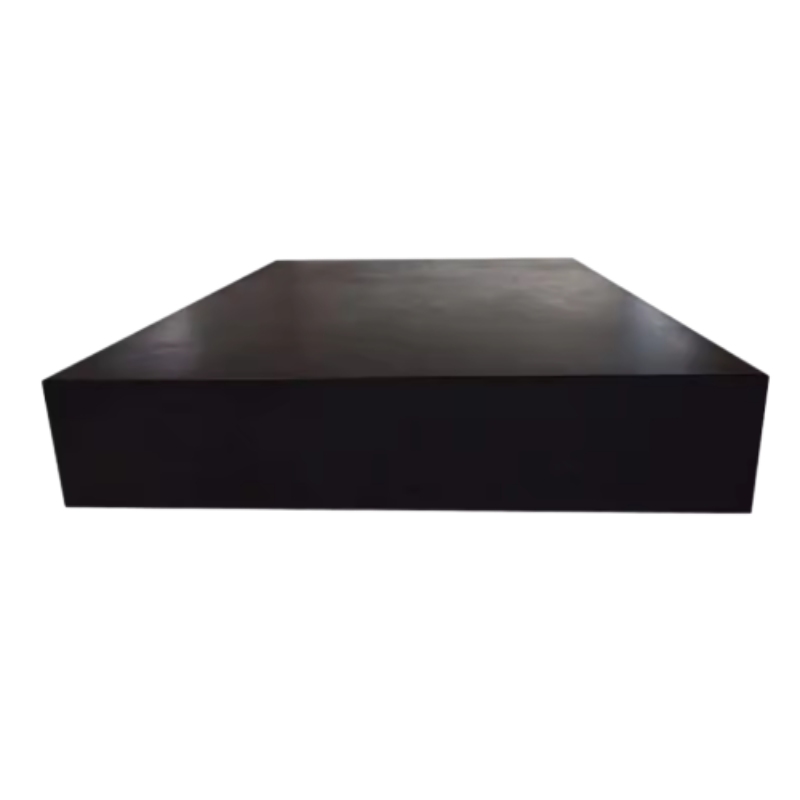

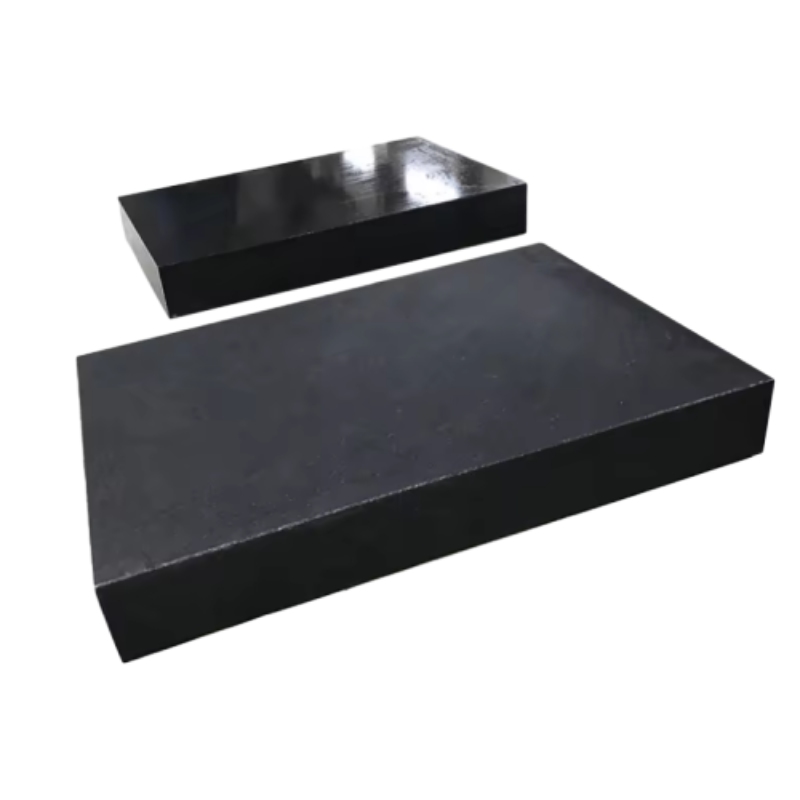

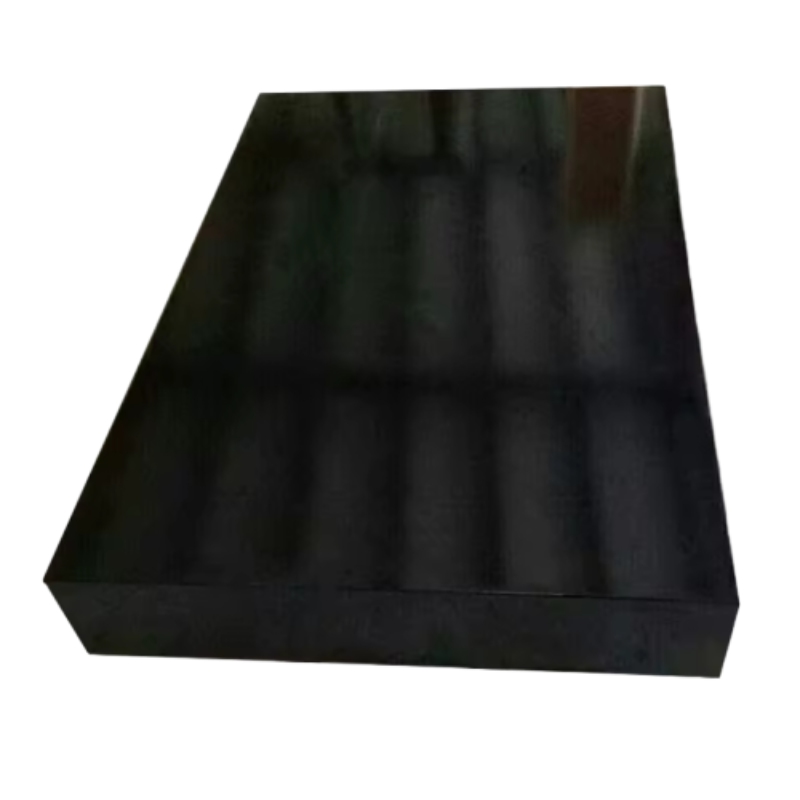

granit sɛgɛsɛgɛli surface plate .

Granit plateforme ye plateforme fɛn ye min dilannen don ni granit ye min bɛ baara kɛ ni masinw ye ani bolo fɛ ka dugukolo kɛ funteni yɔrɔ la min bɛ to ka kɛ, ni flatness accuracy caman bɛ a la.

Granite plateforme ka paramètres physiques .:

A girinya kɛrɛnkɛrɛnnen: 2970-3070kg/m3;

Fanga min bɛ sɔrɔ a la: 245-254kg/m .

m2;

Elastikiw ka sɛgɛn: 1,27-1,47N/mm2;

Linear expansion coefficient: 4,6 × 10-6/°C;

ji minɛcogo hakɛ ye 0,13 ye;

Kɔgɔjida gɛlɛya HS70 walima a sanfɛ.

Granite plateformes ka tiɲɛni ka bon kosɛbɛ ka tɛmɛ nɛgɛdaga plateformes kan. O bɛ kɛ barisa granit ye kɔrɔya kuntaalajan furakɛ ani a kɔnɔna degun tɛ a la tuguni. 000, 00, 0 ani 1 ka tiɲɛni hakɛw ye baarakɛminɛn ɲumanw ye walasa ka taamasiyɛn kɛ ani ka sɛgɛsɛgɛli kɛ baarakɛyɔrɔw la.

Yɔrɔ min bɛ bɔyɔrɔ la: Hebei, Sinuwa

Garanti:1 san

Dɛmɛn ka kɛɲɛ ni mɔgɔw sago ye: OEM, ODM, OBM

Marka tɔgɔ: STRANAN .

Modèle numéro:1006

Material:Grante .

Kulɛri:lankolon .

Ɲɛfɔli:200x200mm-3000x5000mm walima ka kɛɲɛ ni mɔgɔw sago ye .

Surface: fla, dingɛw, T-slots, wdfl.

Baarakɛyɔrɔ ka gɛlɛya: HS70 .

Surface furakɛli: Dugukolo fini

Precision Grade:0-2.

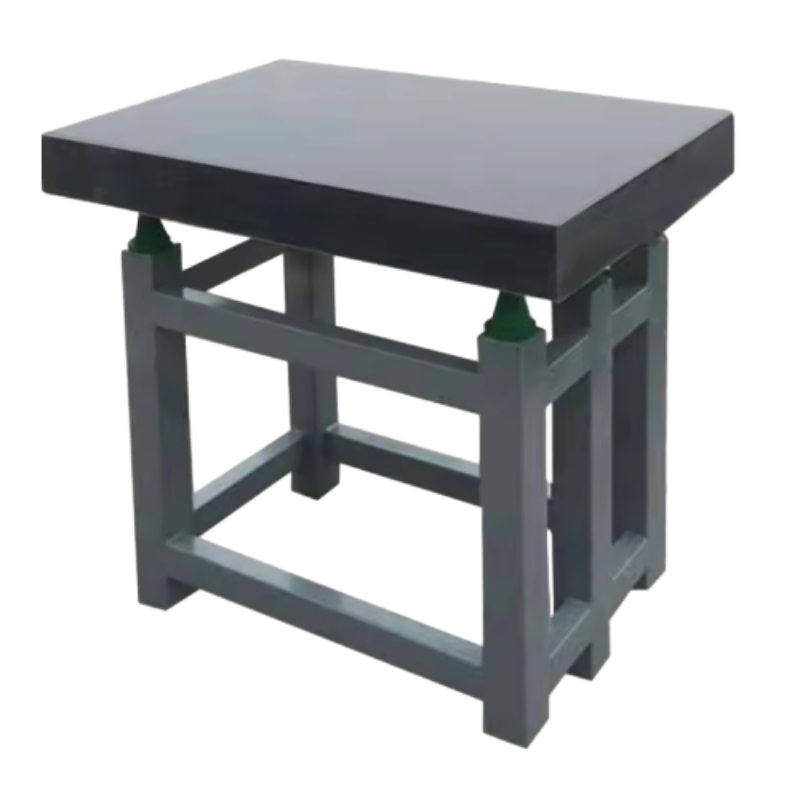

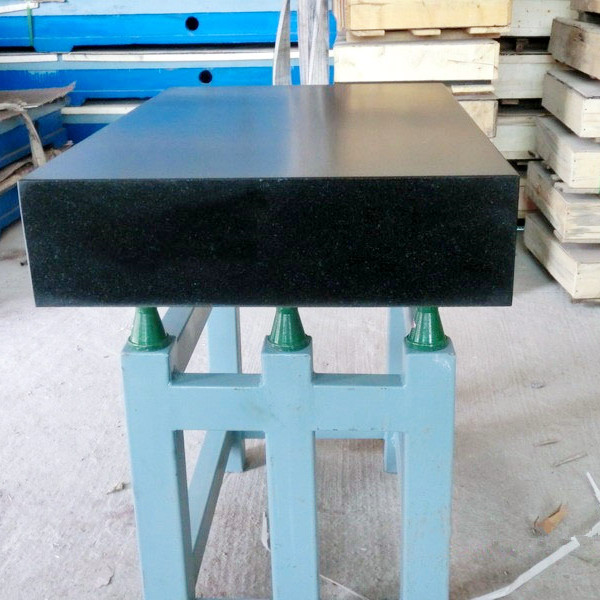

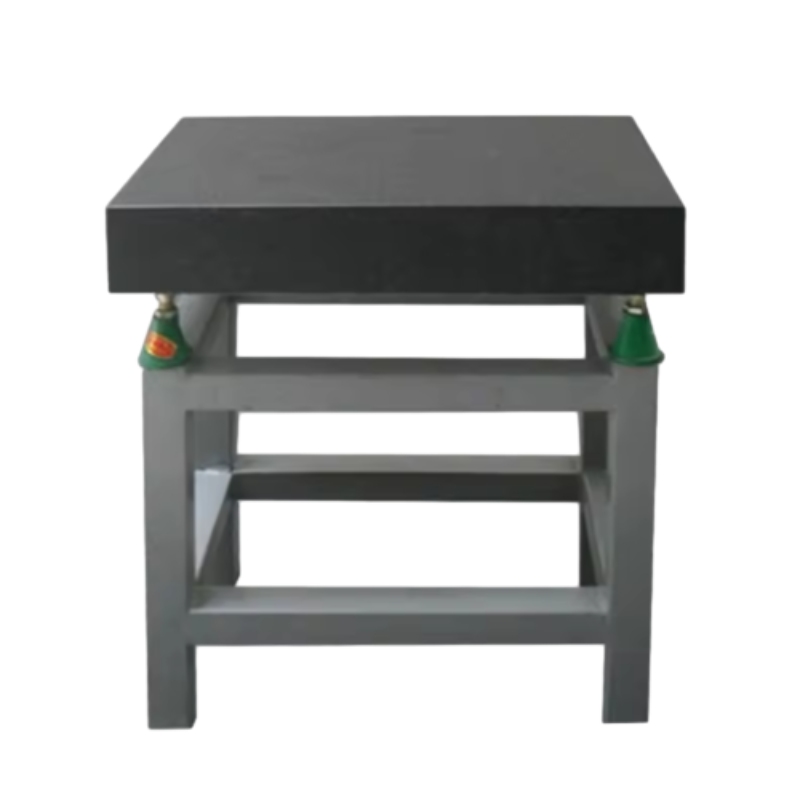

Stand: A bɛ sɔrɔ .

Packaging:P Lywood Box .

Baarakɛcogo (Precision Gauging, Inspection, Layout,T ani Marka kuntilenna .

Details de packages: Plywood Box .

Seko ni dɔnko:20000 fɛnw/pikiw san kɔnɔ .

Waati min bɛ kɛ ka baara kɛ .:

granit surface plate .:

Granit surface plates bɛ dɔn kosɛbɛ k’a sababu kɛ u ka baarakɛcogo ye min tɛ nɔgɔ. granit surface plates ka gɛlɛn fana ka ca .

ka tɛmɛ nɛgɛw kan minnu bɛ kɛ ni nɛgɛ ye. U bɛ Kɛ kungo-kɔnɔ-fɛnw ye walasa ka jateminɛ kɛ ka ɲɛ, ka sɛgɛsɛgɛli kɛ, ka labɛncogo ani ka taamasiyɛnw kɛ ani ka .

A ka fisa laboratuwaraw, ɛntɛrinɛti baarakɛlaw ani baarakɛyɔrɔw fɛ.

Material: Granit .

Ɲɛfɔli: 1000x750mm-3000x4000mm walima ka kɛɲɛ ni mɔgɔw sago ye .

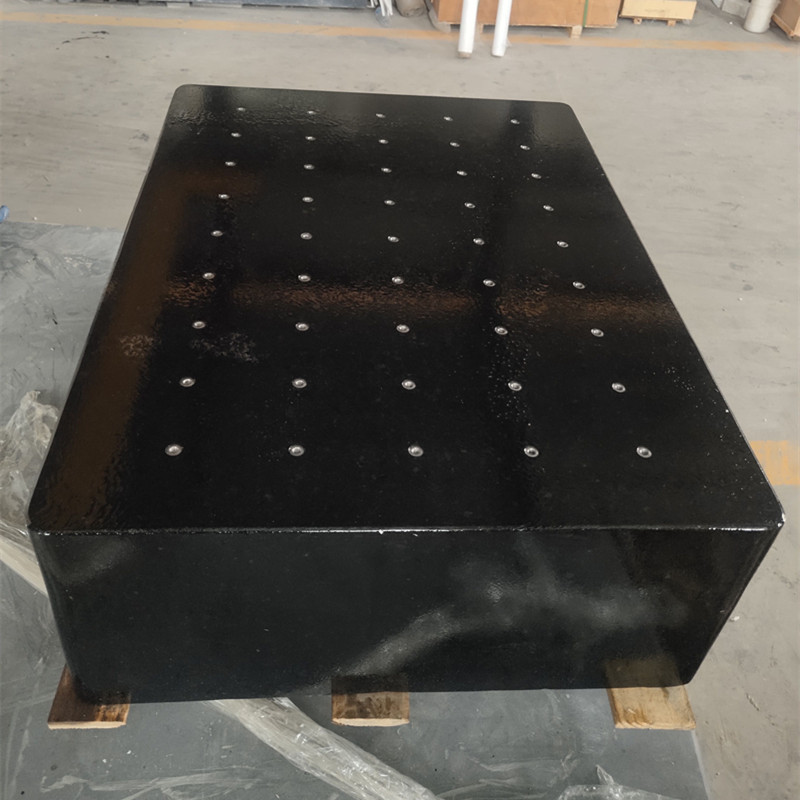

Surface: Flat, Tapped dingɛw, T-slots, wdfl.

Baarakɛyɔrɔ ka gɛlɛya: HS70 .

Surface treatment: Dugukolo kan fini .

Precision grade: 0-2.

A bɛ kɛ ka fɛnw labɛn: Plywood Box .

Mun na granit surface plates nafa ka bon sumanikɛcogo ɲuman na .

Sumanikɛcogo ɲuman siratigɛ la, granit surface plates jɔlen bɛ i n’a fɔ baarakɛminɛn nafamaba min bɛ se ka kɛ ka ɲɛsin jogoɲini ni ɛntɛrinɛti baarakɛcogo ma. U ka nafolo kɛrɛnkɛrɛnnenw b’u kɛ sugandili ye min ka di u ye kosɛbɛ injiniyɛriw, masinw, ani jogoɲini baarakɛlaw cɛ.

Granit surface plates bɛ dila ni granit nafama ye, u bɛ dɔn u ka gɛlɛya danma, u sabatili, ani u ka se ka fɛnw tiɲɛ. Nin jusigilan gɛlɛn in bɛ se ka sumani kɛ tigitigi, bawo a bɛ ɲɛfɔli kɛ yɔrɔ fla kan, min bɛ sabati. Granit tɛ i n’a fɔ fɛn tɔw, a tɛ fɛn caman Changer walima ka fɛn caman Changer waati kɔnɔ, k’a lajɛ ko sumanikɛlanw bɛ to cogo kelen na ani ko u bɛ se ka da u kan.

Granit surface plates nafa kɔrɔ dɔ ye u ka se ka sɛgɛn ni tiɲɛni muɲu ka bɔ u tali la siɲɛ caman. O muɲuli nafa ka bon kosɛbɛ iziniw kɔnɔ, yɔrɔ minnu na tigitigi de ka kan ka kɛ. Ka fara o kan, granit bɛ se ka kɛ ni kemikaliya ye, o b’a to a bɛ se ka tuluw, furajiw ani nɔgɔ wɛrɛw sɔrɔ k’a sɔrɔ a ma bɔnɛ a dafalen na. Nin jogo in nafa ka bon baarakɛyɔrɔ saniyalen marali la ani ka a lajɛ ko sumanikɛminɛnw bɛ to u ma nɔgɔya.

Ka fara o kan, granit surface plates bɛ sɔrɔ u bonya ni u cogoya caman na, u bɛ baara kɛ ka kɛɲɛ ni baara suguya caman ye. A kɛra baarakɛminɛn ye masinw yɔrɔw sɛgɛsɛgɛli la, minɛnw labɛnni na, walima u ka ɲɔgɔnjɛ baara gɛlɛnw kɛli la, o platiw bɛ fura caman di walasa ka sumanikɛcogo ɲuman magoɲɛfɛn suguya caman sɔrɔ. U ka yɔrɔ nɔgɔlen bɛ se ka saniya nɔgɔya la ani ka u mara, ka dɛmɛ don u ka baarakɛcogo la waatijan kɔnɔ ani u ka tiɲɛni na.

Kuncɛli la, granit surface plates nafa ka bon baara o baara la min bɛ sumanikɛcogo ɲuman de wajibiya. U ka muɲuli, u ka sabatili, ani u ka se ka sigida koɲɛw kɛlɛ, o b’a to u bɛ kɛ sugandili ɲuman ye baarakɛlaw fɛ minnu bɛ baara suguya caman na. Ni i ye wari bila granit surface plate la, o tɛ sumanikɛcogo ɲuman dɔrɔn bonya, nka a bɛ i ka baarakɛminɛnw ni i ka minɛnw ka ɲɛnamaya janya fana, o b’a to a bɛ kɛ sugandili hakilitigi ye jɛkulu o jɛkulu bolo min sinsinnen bɛ jogo ɲuman kan.

Granit surface plates jɔyɔrɔ CNC machining bi .

Bi CNC (Ɔridinatɛri jatebɔcogo) masinw ka mara kɔnɔ, tigitigi ye fɛn bɛɛ la belebele ye. Baarakɛminɛn suguya minnu bɛ o tiɲɛni nɔgɔya, granit surface plates bɛ bɔ kɛnɛ kan i n’a fɔ masinw kɛcogo jɔnjɔn. U jɔyɔrɔ CNC masinw na, o nafa ka bon kosɛbɛ, wa a bɛ kɛ fɛn caman ye, a bɛ jusigilan sabatilen di min bɛ baara kɛcogo ɲuman sabati.

Granit surface plates nafa ka bon u ka gɛlɛya ni u ka sabatili la. A dilannen don ni granit nafama ye, o tasaw bɛ yɔrɔ fla ni gɛlɛn di min nafa ka bon masin yɔrɔw sumani ni u sɛgɛsɛgɛli la. Granit ka jogo minnu tɛ se ka kɛ, olu fana bɛ funteni jiginni nɔw dɔgɔya, k’a lajɛ ko sumanikɛcogo tigitigiw bɛ to cogo kelen na waati kɔnɔ. O sabatili in nafa ka bon kosɛbɛ CNC masinw sigidaw la, hali ni fɛn fitinin caman bɔli bɛ se ka kɛ sababu ye ka filiba kɛ fɛn laban na.

Ka fara o kan, granit surface plates bɛ na ni sɛgɛnba ye, o b’a to u bɛ se ka don o don baara gɛlɛnw muɲu fɛn dilanni yɔrɔw la. Granit tɛ i n’a fɔ fɛn tɔw, a tɛ tiɲɛ degun kɔrɔ, a bɛ a flakɛcogo ni a tiɲɛni mara hali doni girinmanw kɔrɔ. Ka fara o kan, u ka sigida minnu tɛ porose ye, olu bɛ dɛmɛ don saniya nɔgɔya la ani u ladonni na, o bɛ dɔ fara u ka ɲɛnamaya jan kan.

CNC masinw na, granit surface plates bɛ kɛ baarakɛminɛn nafamaw ye, a tɛ kɛ dɔrɔn ka baarakɛminɛnw labɛn ani k’u dɛmɛ masinw waati la, nka u bɛ kɛ fana sumanikɛcogo ɲuman ye. O platiw nafa ka bon kosɛbɛ ni u bɛ CNC masinw jateminɛ, bawo u bɛ kunnafoni yɔrɔw di minnu bɛ se ka da u kan walasa ka a dɔn ko yɔrɔ kelen-kelen bɛɛ bɛ baara kɛ ka ɲɛ.

Kuncɛli la, granit surface plates jɔyɔrɔ bi CNC masin na, o tɛ se ka fɔ ka tɛmɛ. U bɛ sabatili, muɲuli, ani tiɲɛni wajibiyalenw di minnu nafa ka bon kosɛbɛ masinko taabolo ɲumanw na. Ni baara in bɛ ka taa ɲɛ, aw bɛ aw jigi da granit surface plates kan, o bɛna to fɛnba ye ka ɲɛsin fɛn dilanni ɲɛtaa sɔrɔli ma.

Material properties ani farikolo nafaw granit inspection surface plates .

Storaen ka granit surface plates bɛ dilan walasa ka sabatili ni tiɲɛni min tɛ se ka suma ni ɲɔgɔn ye, o ye izini sumani jusigilan ye, ka granit nafama ka fɛnw cogoya kɛrɛnkɛrɛnnenw ta walasa ka jateminɛ kɛ jateminɛ na. Anw minnu ye granit surface plates ani granite sɛgɛsɛgɛli tabali tigitigiw dilanbaga dannamɔgɔ ye, an bɛ fɛɛrɛw di minnu bɛ tɛmɛ sigida caman kan, k’a ta CNC masinw ka baarakɛyɔrɔw la ka se aerospace calibration laborates ma.

Geologique fondement ka sabatili min tɛ se ka suma ni ɲɔgɔn ye .

A bɛ sɔrɔ san miliyari caman kɔnɔ ka bɔ fara igneous la min bɛ kɛ fɔlɔ piroxene ni plagioclase ye, an ka granit surface plates bɛ ni crystalline structure dense ye, min bɛ kɛ kelen ye (grain size ≤0.5mm) min bɛ kɔnɔna degunw bɔ yen—nafaba min bɛ sɔrɔ nɛgɛ wɛrɛw kan minnu bɛ se ka sɔgɔ walima ka sɔgɔsɔgɔ. O dacogo in bɛ na ni yɔrɔ nɛrɛma ye min bɛ kɛ cogo la min bɛ bɛn ɲɔgɔn ma ni porosite fitinin ye, o bɛ kɛ sababu ye ka yɔrɔ fla kɛcogo ɲuman di surface plate calibration ani dimensional inspections ma yɔrɔ minnu na micron-level accuracy tɛ se ka kɛ ɲɔgɔn fɛ.

Mekanikiw ka nafolo minnu dilannen don baara gɛlɛnw kama .

An ka granit sɛgɛsɛgɛli tabali farikolomaw bɛ ɲɛ ka ɲɛsin iziniw ka gɛlɛya ma .:

Load-bearing capacity: ni density ye 2970 kg/m3 ye ani compression fanga ye 245 MPa ye, o plates bɛ doni jɔlenw muɲu fo ka se 5000 kg/m2 ma k’a sɔrɔ u ma fɛn caman tiɲɛ—a dafalen don walasa ka fɛn girinmanw dɛmɛ welding tabali sigicogo la walima CNC masin jateminɛ waati la.
Gɛlɛya danfaralen : Kɔgɔjida D gɛlɛya min ye 70+ ye, o bɛ sɔgɔsɔgɔ ni fɛnw don ɲɔgɔn na minnu bɛ bɔ jateminɛ walima fiɲɛbɔlan ɲɔgɔn na tuma caman na, k’a lajɛ ko a sanfɛla bɛ to ka bɔ fiɲɛw la minnu bɛ se ka sumani dafalen tiɲɛ san tan caman kɔnɔ.
Yɛrɛyɛrɛli damping: Microstructure granulaire bɛ yɛrɛyɛrɛ 80% minɛ ka tɛmɛ nɛgɛ kan, ka fɛn dɔ dɔgɔya min bɛ bɔ masin kɛrɛfɛtaw la—o ye fɛn nafamaba ye baaraw la minnu bɛ kɛ ka ɲɛ i n’a fɔ coordinate measure machine (CMM) alignment.

Sigida laminiko ɲɛnabɔli walasa ka tiɲɛni kɛ cogo basigilen na .

Storaen ka granit surface plates for sale bɛ ɲɛ sɔrɔ cogo gɛlɛnw na k’a sababu kɛ .:

Sumaya sabatili : sɛnɛfɛnw falenni sinsinni hakɛ dɔgɔman (4,6×10⁻⁶/°C) bɛ a to fɛn fitinin caman yeli hakɛ danfara la funteni hakɛw cɛ (10–30°C), ka filiw dɔgɔya minnu bɛ sɔrɔ funteni jiginni fɛ baarakɛyɔrɔw la minnu ma labɛn.
Nɔgɔ bɛ se ka kɛ : ni ji minɛcogo hakɛ ye 0,13% dɔrɔn ye, o yɔrɔ min tɛ porose ye, o bɛ tuluw, nɛnɛfɛnw, ani nɔgɔw gɛn—ka nɔgɔ walima kemikɛli tiɲɛni ban min bɛ sɔrɔ nɛgɛdaga kɔnɔ.
Zero magɛnni-dafalen: Non-magnetic properties b’a to nin plates ninnu ka ɲi kosɛbɛ iziniw ma yɔrɔ minnu na kuran-magnetiki-dafalen bɛ se ka sumanikɛcogo minnu sinsinnen bɛ sensɛri kan, i n’a fɔ semiconducteur dilanni walima furakɛli-minɛnw sɛgɛsɛgɛli.

Design Excellence ka baara kɛcogo ɲuman .

Nafa minnu bɛ sɔrɔ fɛnw na minnu bɛ sɔrɔ u yɛrɛ la, an ka tasaw bɛ kunnafoni tigitigiw jira .:

Surface Finish: Dugukolo fini min bɛ RA ≤0.8μm kan, o bɛ ɲɔgɔn sɔrɔ cogo ɲuman na dial indicateurs (dial indicateurs) la, janya jateminɛnanw na, ani jateminɛkɛminɛn wɛrɛw la, o bɛ jateminɛ segin-seginlenw sabati ±2μm kɔnɔ 000-grade plates kɔnɔ.
Modular Compatibility: Standard Sizes (200×200mm ka se 3000×5000mm) ani T-slots optional walima mounting holes bɛ se ka kɛ sababu ye ka ɲɔgɔn sɔrɔ ni modular welding tables ye walima ka custom fixtures kɛ, ka fɛn caman kɛ fɛn dilanni na ani ka sɛgɛsɛgɛli baara kɛ.

Aw ye aw jigi da Storaen kan ka ɲɛsin fɛnw ma minnu bɛ kɛ ni fɛnw ye .

Ni tiɲɛni ni ɲɛnamaya janya tɛ se ka fɔ ka ban, Storaen ka granit surface plates bɛ nafa minnu bɛ sɔrɔ u yɛrɛ la ani minnu dilannen don ni ɛntɛrinɛti ye, minnu ka kan ka kɛ walasa ka i ka jateminɛ kɛcogo kɔrɔta. A kɛra sariya ye ka ɲɛsin surface plate calibration ma, plateforme stable for aerospace component inspection, walima basigi basigilen min bɛ kɛ ka ɲɛsin welding setups girinmanw ma, an ka furaw bɛ dugukoloko dafalen ni industri-grade design fara ɲɔgɔn kan.

customization services ani quality assurance for Storaen granit inspection surface plates .

Storaen bɛ waso ka granit surface plates (granite surface plates) di minnu bɛ i ka tigitigi sumani ni i ka izini baarakɛcogo ɲininiw dafa. O kɔfɛ, an ka ladamuni baaraw ni jogoɲini gɛlɛnw bɛ kɛ sababu ye ka granit surface plate ani granite inspection table bɛɛ lajɛlen kɛ ka kɛɲɛ ni i ka fɛnsɛbɛnniw ye—min bɛ dɛmɛ ni seereyaw ye ani garantiw ye minnu bɛ dannaya lawuli sumani bɛɛ la.

Furakɛcogo minnu bɛ kɛ ka kɛɲɛ ni wajibi bɛɛ ye .

Sising custom & géométrie .

I mago bɛ granit sɛgɛsɛgɛli tabali fitinin na laboratuwari baara kama (200×200mm) walima masin girinmanw ka plateforme (200×200mm) walima masin girinmanw kama (fo ka se 5000×8000mm ma), an ka ɛntɛrinɛti injiniyɛriw bɛ baara kɛ ni i ye walasa ka hakɛw, u bonya, ani u cogoya ɲɛfɔ—o la, fɛn dilannenw minnu bɛ kɛ ni fɛnw ye, minnu bɛ kɛ cogo la, walima minnu tɛ kɛ cogo la. Custom Edge Profiles (Chamfered, Bevelled) ani Basi minnu bɛ don a kɔnɔ, olu bɛ sabatili sabati ni u bɛ don ɲɔgɔn na ni modular welding tables walima automated fixtures ye.

Surface features for functional excellence .

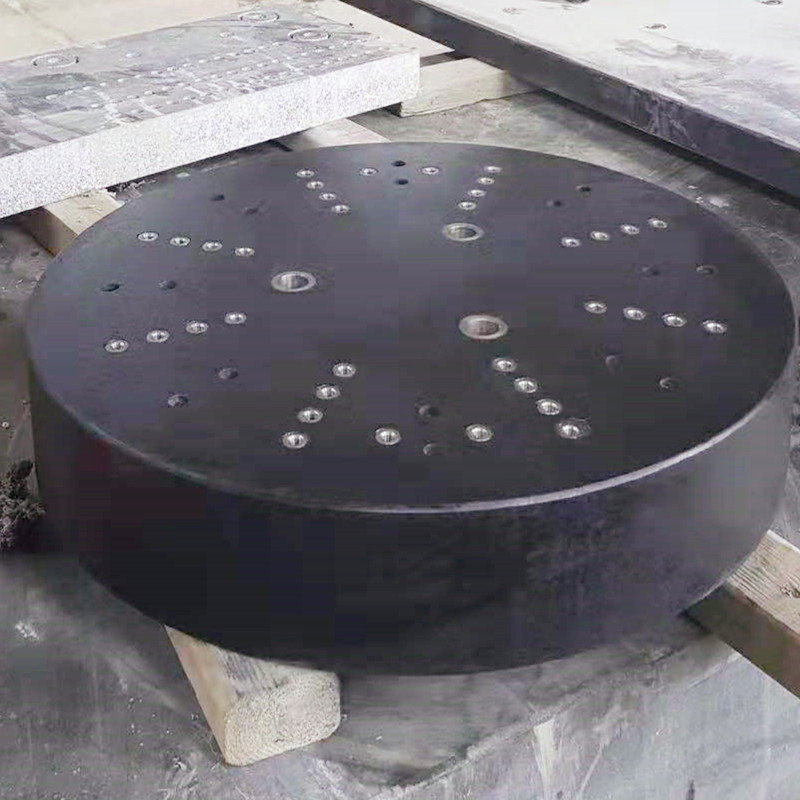

T-Slots & Mounting Holes: Precision-machine T-slots (ISO 2571 standard) walima jiribuluw (M6–M24) bɛ se ka jateminɛfɛnw, fiɲɛw, walima robow bolow sirili lakananen kɛ, minnu ka ɲi kosɛbɛ sɛgɛsɛgɛli kɛcogo barikamaw kama walima welding tabali labɛncogo la.
Datugulan kɛrɛnkɛrɛnnenw: Anti-static walima anti-slip coatings option option bɛ mɔgɔ tanga buguri dalajɛli ma walima a yɔrɔw sɛgɛsɛgɛli ma semiconducteur walima furakɛli minɛnw dilanni sigidaw la.

A bɛ se ka kɛ ko a bɛ se ka kɛ fɛn caman ye .

An ka granit surface plates dabɔra ka don ɲɔgɔn na ni coordinate measure machines (CMMS) ye, janya jateminɛnanw, ani surface plate calibration systems, ni reference points pre-machinés ye sumanikɛcogo la min bɛ se ka tugu diɲɛ sariyaw kɔnɔ (ISO 8512, ASME B89.1.3).

Jogoɲumanya sabatili taabolo min tɛ jɔrɔ .

Material Selection & Inspection .

Slab bɛɛ bɛ daminɛ ni granit granite premium-grade ye (sɛnɛfɛn hakɛ ≤0.5mm, ji minɛcogo ≤0,13%), ɲɛ ni ultrasonically tested walasa ka kɔnɔna dafabaliya ban. Fara min ni a ka density kelen (2970 kg/m3+) ani Shore D gɛlɛya ≥70 bɛ taa ɲɛ ka taa masinw na.

Precision ka fɛn dilanni .

Grinding & Polishing: CNC grinders kɔrɔlenw bɛ se ka surface finiw sɔrɔ ka ɲɛ i n’a fɔ RA 0.8μm, ni planar flatness controlled to ±2μm for 000-grade plates—verified ni laser interferometers.
Sumayabanaw lajɔli funteni na : platiw bɛ kɛ sanga 72 sabatili la 20±2°C la walasa ka masinw ka degun tolenw bɔ, ka sabatili kuntaalajan sabati atelier sigidaw la minnu bɛ wuli ka bɔ u nɔ na.

Garanti & feere kɔfɛ dɛmɛ .

Global Service Network: Walasa ka granit surface plates feere diɲɛ fan bɛɛ, an ka jɛkulu bɛ sigili ɲɛminɛ, ka segin-ka-bɔnyew kɛ waati ni waati, ani ka jaabi teliya la fɛɛrɛko ɲininiw kan—aw y’a jira ko aw ka wari bilali bɛ baara kɛcogo ɲuman mara san tan caman kɔnɔ.

STORAEN sugandi ka ɲɛsin fɛnw ma minnu bɛ kɛ ka kɛɲɛ ni mɔgɔw sago ye .

Ni aw mago bɛ granit sɛgɛsɛgɛli tabali la min bɛ kɛ ka kɛɲɛ ni aw ka aerospace component alignment ye, granit surface plate min bɛ baara kɛ kosɛbɛ industriw ka welding fixtures kama, walima platform calibrée pour la lab-grade metrologologie, Storaen’s customization and quality assurance set the standard. An ka cɛsiri ka bɛn i mago tigitigiw ma ni dugukoloko muɲuli ni ɛntɛrinɛti ɲɛfɔli ye, o b’a to an ye jɛɲɔgɔn sugandilen ye fɛn dilannikɛlaw fɛ minnu bɛ ban ka bɛnkan sɔrɔ sumanikɛcogo dafalen kan. Aw ye an ka granit surface plates feere bi ani ka fura dɔ fanga sɔrɔ min jɔra dɔrɔn aw ye.
